High Brightness Side View IP20 DC5V Neon SK6812 Led Strip

Brand Name : filamentlux

Model Number : TS-100144-SK6812RGBW

Certification : CE & ISO9001

Place of Origin : China

MOQ : 3000PCS

Price : Negotiable

Payment Terms : T/T, L/C, Western Union

Supply Ability : 500kpcs per month Contact Now

Delivery Time : 20-25days

Packaging Details : Color box or Blister

Light source : SMD5050 RGBW

Beam angle : 120 degree

Operate Voltage : DC5V

Consumption Watt/M : 19.2(max)W

Pixel pitch（mm） : P16.6mm

Pixel resolution（Dot/㎡） : 3600

Entire piece LED quantity : 60 pcs

Printed circuit board thickness : 0.25mm

Operation Temperature : -40℃-40℃

Storage Temperature : -10℃-50℃

Contact Now

High Brightness Side View IP20 DC5V Neon SK6812 Led Strip



Applications:

The excellent light and user-friendly designs make LED strip perfect for numerous applications, i.e cove lights, back lights, cabinet lights, edge light, architectural lights for corridor, canopy, archway, lights for path and contour marking; etc.



They can be a good choice for lights for hotels, restaurants, night clubs, coffee / wine bars, shopping malls, various shops, cinemas, beauty centers, office fronts, even lights for household kitchens or living rooms, etc.



Technical Parameters:

Light source SMD5050 RGBW
Beam angle 120 deg.
Operating voltage DC5V
Consumption watts per 60 LEDs/M 19.2(max)W
Pixel pitch(mm) P16.6mm
Pixel resolution(Dot/㎡) 3600
Entire piece LED quantity 60 pcs
Printed circuit board thickness 0.25mm
Operation Temperature -40℃-40℃
Storage Temperature -10℃-50℃



Features and Benefits :

  • Control IC included, supporting numerous Color-change effects;
  • control by SD controller,DMX512,Artnet
  • Flexible PCB 5V low voltage input;
  • PCB Color: White & Black available for choose
  • Absolutely addressable ,each IC built inside RGB LED
  • 5 Meter per PCS,Customer’s size available also
Part Number Emitting color LED Quantity Voltage (V) IC Current (A/1m) Lumen per 1m/60LED
TS-10060-SK6812RGBW RGBW 60/M 5 Sk6812 6.8A R288/G720/B216 lm Non-waterproof
TS-100144-SK6812RGBW RGBW 144/M 5 SK6812 6.8A R288/G720/B216 lm Silicon Tube

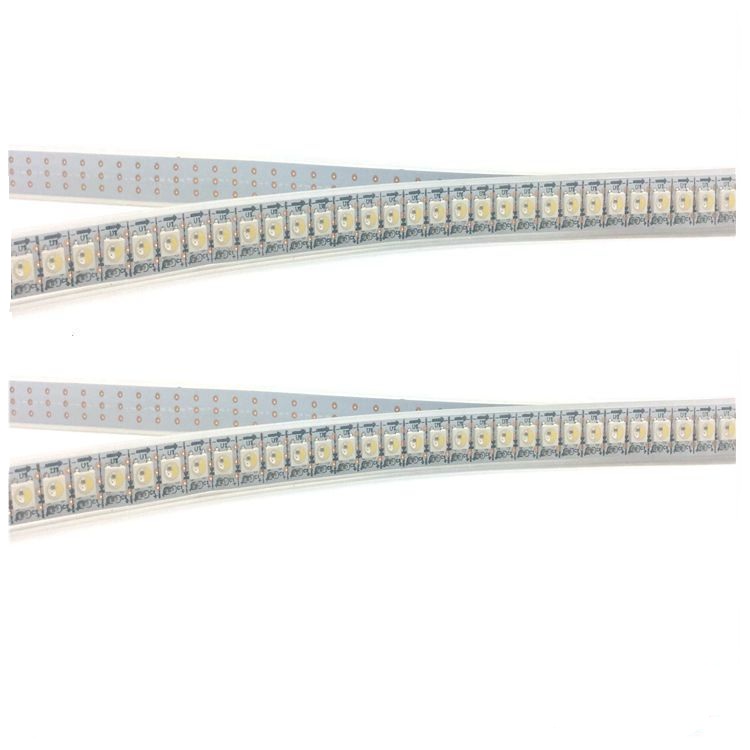

High Brightness Side View IP20 DC5V Neon SK6812 Led Strip

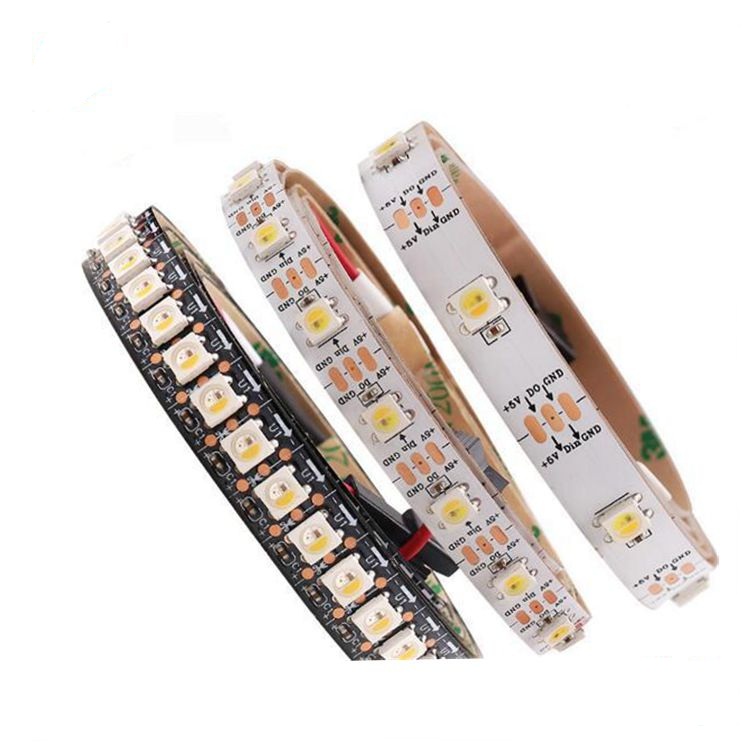

High Brightness Side View IP20 DC5V Neon SK6812 Led Strip
