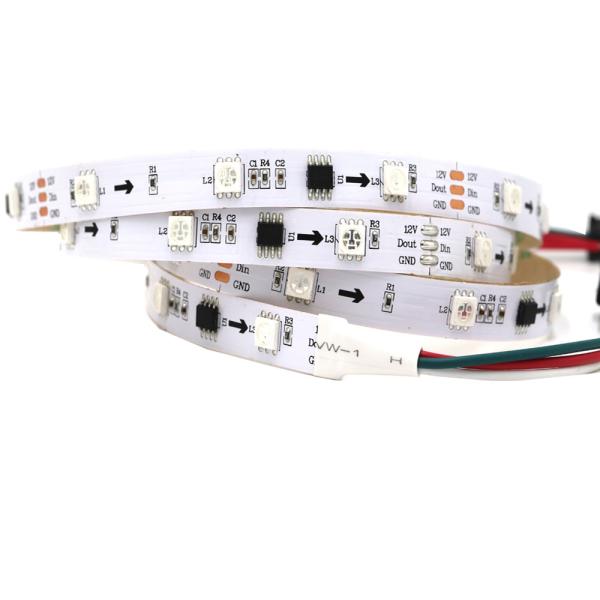

P33.3mm 9w Digital 30LEDS/M 5050 Addressable LED Strip
Advantages
1. Long lifespan and low failure rate
2. Low voltage with 12V, be safe to use
3. Low power consumption, 80% energy saving
4. High brightness, full range colors are available
5. Moisture-proof, water-proof,dust proof and impact resistance
6. Easy installation, be convenient to use in all display situation
Applications:
The excellent light and user-friendly designs make LED strips perfect for numerous applications, i.e cove lights, backlights, cabinet lights, edge lights, architectural lights for the corridor, canopy, archway, lights for path and contour marking; etc.
They can be a good choice for lights for hotels, restaurants, night clubs, coffee/wine bars, shopping malls, various shops, cinemas, beauty centers, office fronts, even lights for household kitchens or living rooms, etc.
Features and Benefits :
- Control IC included supporting numerous color-change effects;
- Pcontrol by SD controller,DMX512,Artnet
- Flexible PCB 12V low voltage input;
- PCB Color: White & Black available for choose
- Absolutely addressable, each IC control 3 RGB LEDs
- Standard Reel Length: 5meter/roll, also can be customized.
| Light source |
SMD5050 RGB |
| Beam angle |
120 deg. |
| Operating voltage |
DC5V |
| Consumption watts per 60 LEDs/M |
9(max)W |
| Pixel pitch(mm) |
P33.3mm |
| Pixel resolution(Dot/㎡) |
20736 |
| Entire piece LED quantity |
30pcs |
| Printed circuit board thickness |
0.25mm |
| Operation Temperature |
-40℃-40℃ |
| Storage Temperature |
-10℃-50℃ |
| Part Number |
Emitting color |
LED Quantity |
Voltage (V) |
IC |
Current (A/1m) |
Lumen per 1m/60LED |
| TS-10060-WS2812 |
RGB |
30/M |
5 |
WS 2812 |
6.8A |
R288/G720/B216 lm Non-waterproof |
| TS-10060-WS2812 |
RGB |
30/M |
5 |
WS 2812 |
6.8A |
R288/G720/B216 lm Silicon Tube |
